Checkbox Group

The Checkbox Group component allows users to select one or multiple options from a list. Whether you're letting users choose their interests or settings, this component brings clarity and control with every click.



Properties​

The following properties are available to configure the behavior of the component from the form editor (this is in addition to common properties).

Common​

Property Name string​

This is the identifier used to bind the component to a form’s data model. It’s mandatory and must be unique within the form.

Label object​

Customize whether to display a label. Hiding it can simplify the UI in some layouts.

ToolTip string/function​

Provides extra context via a hover message — perfect for subtle hints.

Mode object​

Toggle between single and multiple selection modes depending on the use case.

Edit mode object​

Select between Editable, Read Only, or Inherited from the form.

Hide boolean​

Allows the component to be conditionally hidden from the form.

Data​

Data Source Type object​

Choose the source of checkbox items: from predefined values, a reference list, or a remote API.

Items​

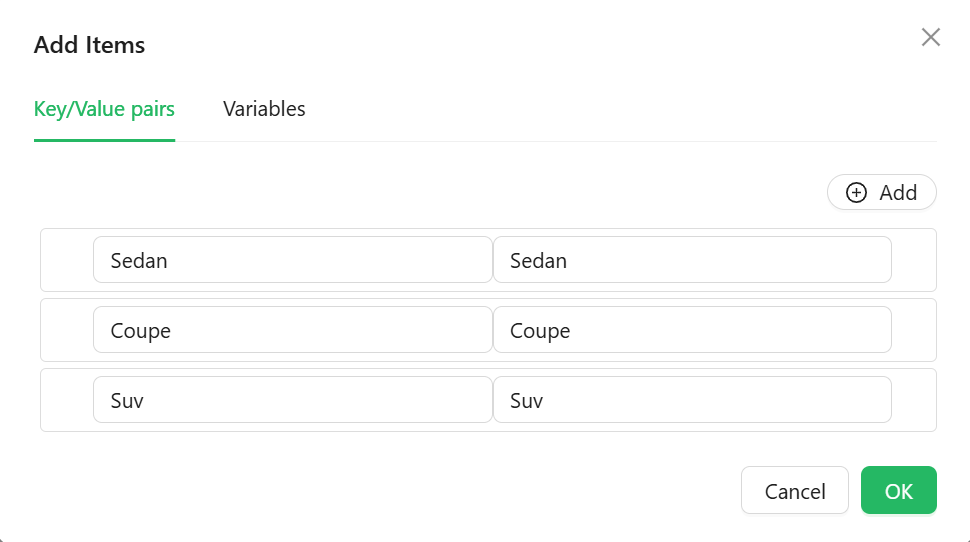

Manually enter label-value pairs for the checkboxes. Useful for static lists.

Validation​

Required boolean​

Mark the checkbox group as required. Ensures at least one option is selected before form submission.

Appearance​

Direction object​

Decide if the checkboxes are arranged horizontally or vertically.

Custom Styles function​

Inject your own CSS styles via JavaScript (must return a style object).
