Button Group

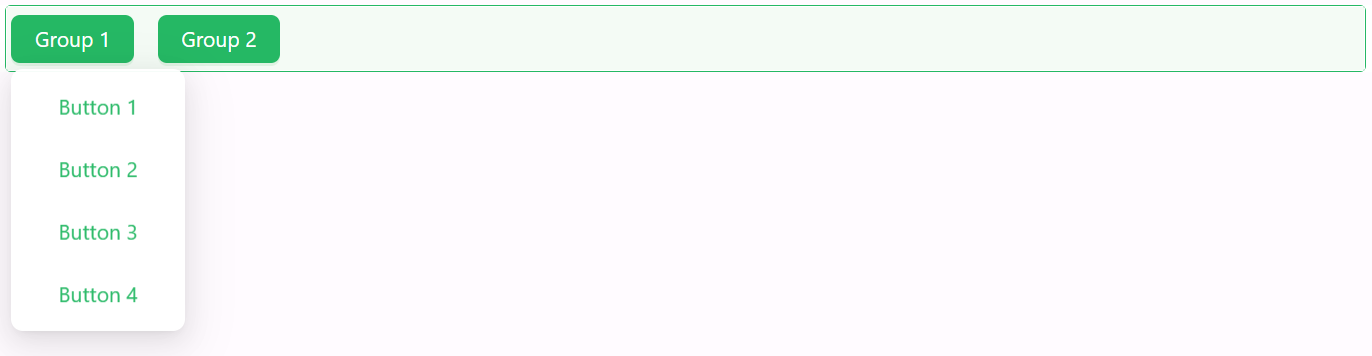

The Button Group component offers a flexible way to present a set of action buttons in a single row or column layout. With options for layout orientation, spacing, and complete styling control, it’s ideal for organizing grouped actions in a visually consistent manner.



Properties​

The following properties are available to configure the behavior of the component from the form editor (this is in addition to common properties).

Common​

Component Name string​

A unique identifier for the button group. (Required)

Edit Mode object​

Set the component’s interaction behavior:

  • Inherited (default): Behavior is inherited from the parent form.

  • Editable: Users can set and change their button.

  • Read Only: Users can view the button group but cannot change it.

Hide boolean​

Controls whether the button group is shown or hidden.

Configure Button Group object​

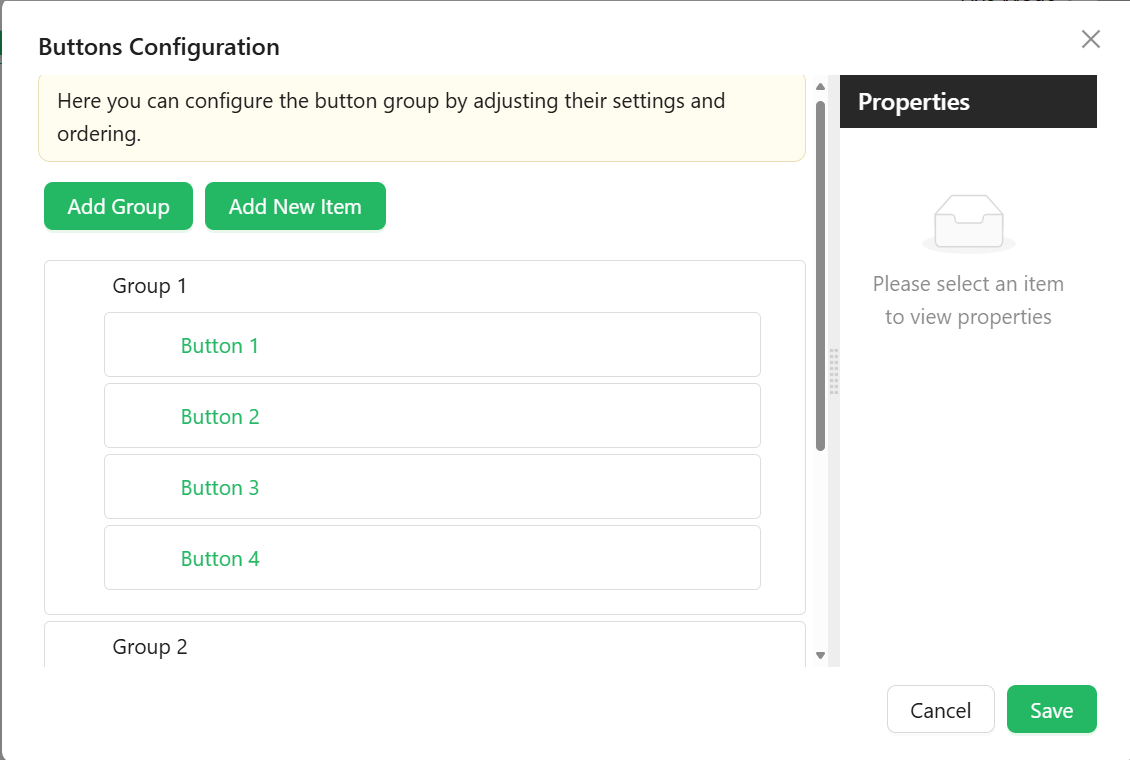

Configure button groups and items using a visual builder. Optionally supports expression logic for visibility or customization. This array may include two kinds of entries: Group Items and Button Items, each with its own configuration.

Group Item

Used to group multiple buttons under a common label or logic.

  • Group Name string – Internal identifier for the group.

  • Label string – The title for the button group.

  • Group Tooltip string – Tooltip displayed when hovering over the group.

  • Icon object – Optional icon for the group label.

  • Down Icon object – Optional dropdown icon to indicate collapsibility.

  • Button Type object – Button style type for the group:

    • Link (default)
    • Primary
    • Ghost
    • Dashed
    • Text

  • Edit Mode object – Controls interaction within the group:

    • Editable
    • Read Only
    • Inherited (default)

  • Hide boolean – Hides the entire group.

  • Hide When Empty boolean – Automatically hides the group if no visible buttons remain.

Button Item

Used to define individual buttons.

  • Item Type string – Defines the button's behavior:

    • Button (default)
    • Separator
    • Dynamic Items

  • Name string – Internal identifier for the button.

  • Caption string – Label or descriptive text shown on the button.

  • Tooltip string – Helper text displayed on hover.

  • Icon string – Optional icon shown beside the caption.

  • Edit Mode object – Controls interaction for the button.

    • Editable
    • Read Only
    • Inherited (default)

  • Hide boolean – Determines whether the button is hidden.

Is Button Inline boolean​

Displays buttons as inline-flex elements to keep them aligned in a single line.

Appearance​

Gap object​

Spacing between buttons:

  • Small
  • Medium
  • Large

Dimensions object​

Specify the size of your component:

  • Width, Height
  • Min/Max Width and Height
  • Overflow behavior

Border object​

Personalize the borders:

  • Set border width, color, and style
  • Round the corners for a softer touch

Background object​

Pick your flavor of background:

  • Color
  • Gradient
  • Image URL
  • Uploaded Image
  • Stored File

Also tweak background size, position, and repeat behavior.

Shadow object​

Give depth with adjustable shadows:

  • Offset, Blur, Spread, Color

Margin & Padding object​

Fine-tune spacing inside and around the component.

Custom Styles function​

Inject your own CSS styles via JavaScript (must return a style object).
