File Storage

File storage, display, and management are common needs in many business applications. Shesha caters to these needs with its built-in file management features. These include:

1. APIs for the uploading, downloading, deletion, updating (incl. version management) of files
2. UI components that can bind to entities and allow uploading, downloading and viewing of files
3. Storage providers that allow files to be stored in various types of storage locations. Currently, local file storage and Azure Blob Storage are supported, with the option for custom providers to be implemented.
4. Metadata management for all files uploaded

Adding a file to an entity

If you wish to be able to upload a file against an entity, simply add a property of type StoredFile to the entity as follows:

public class MyEntityWithFile : Entity
{
    ...

    public virtual StoredFile MyFile { get; set; }

    ...
}

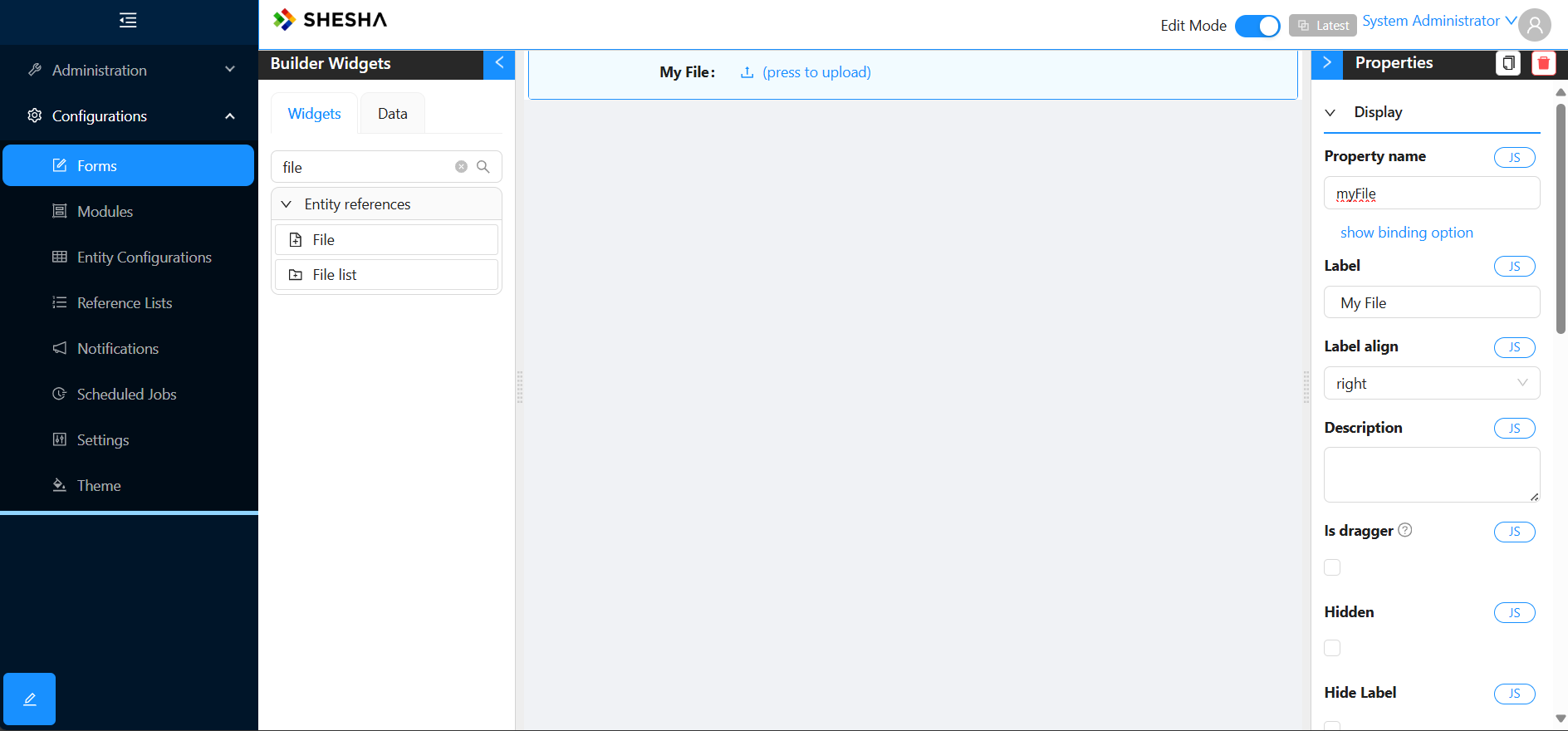

On the front-end you can then use the File form component and bind it to your new StoredFile property as illustrated below:

TODO: INSERT SCREENSHOT WITH FILE COMPONENT

Refer for the File form component for more details on how to configure the component.

Adding a list of files to an entity

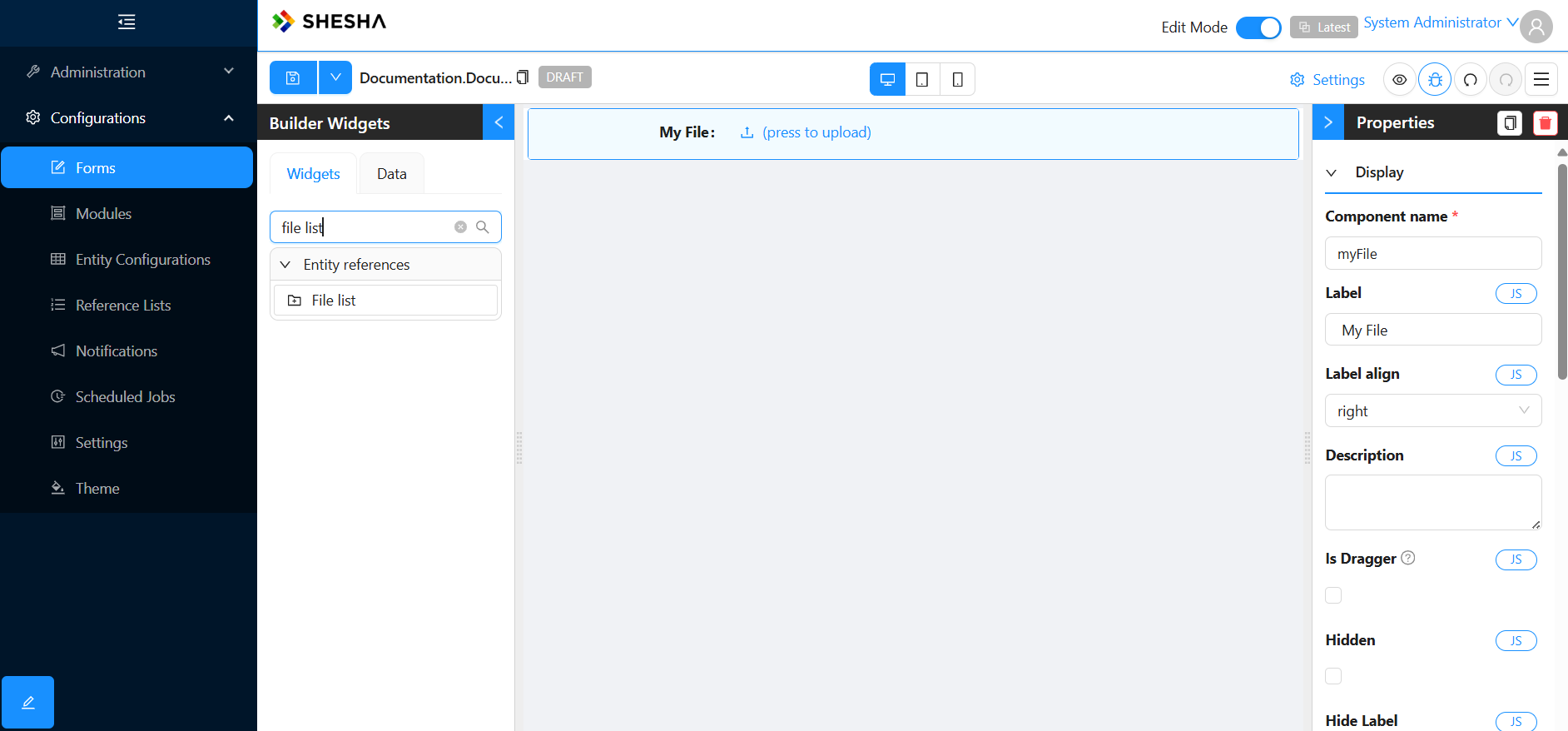

If you wish to be able to upload a list of files against an entity, no changes are required to your domain model. Simply add the FileList form component to your form and bind it to your entity as illustrated below:

TODO: INSERT SCREENSHOT WITH FILE COMPONENT

The FileList component will automatically track which files are part of the list using the OwnerType, OwnerId and Category properties of the StoredFile entity. Note that the FileList component will only be able to update these properties accurately if properly configured. Refer for the FileList form component for more details on how to configure the component.

Note: In cases where files are upload files before the owner entity has been persisted and therefore assigned an Id, the dynamically generated Create end-point will automatically the update of OwnerType, OwnerId and Category properties for all previously created StoredFile entities created once the owner entity has been persisted and assigned an Id. If you are not using the default Create end-point, you will need to ensure that these properties are updated manually on your custom end-point using the TODO: Ask Ernest for the name of the method method.

StoredFile Entity and File Metadata

The StoredFile entity is used to store metadata about files uploaded into the application and has the following properties:

Property	Type	Description
OwnerId	string	The ID of the owner of the file.
OwnerType	string	The type of the owner of the file.
FileName	string	The original name of the file. When saved in the system's storage location the original file name is replaced by a Guid to avoid name clashes. This therefore provides a view of the original name of the file.
FileType	string	TODO: Confirm usage The type of the file.
Category	Int64?	TODO: Confirm usage and if maps to a reference list The category of the file.
Description	string	The description of the file.
SortOrder	int	The sort order of the file.
ParentFile	StoredFile	TODO: Confirm usage The parent file of the current file.
Folder	string	The folder where the file is stored relative to root location of the file storage location.
IsVersionControlled	bool	Indicates whether the file is version controlled.
TenantId	int?	The ID of the tenant.

StoredFileVersion

Property	Type	Description
File	StoredFile	The StoredFile this version relates to.
VersionNo	int	The version number.
FileSize	Int64	The size of the file stored in Bytes.
FileName	string	The name of the file on the storage location. Note this will differ from the original name of the file as it is replaced with a Guid when stored to ensure uniqueness.
FileType	string	The type of the file as per the file extension of the file when uploaded.
Description	string	An optional description for the file version.
IsSigned	bool	TODO: Confirm usage
IsLast	bool	If true, indicates that this is the latest version for the file.

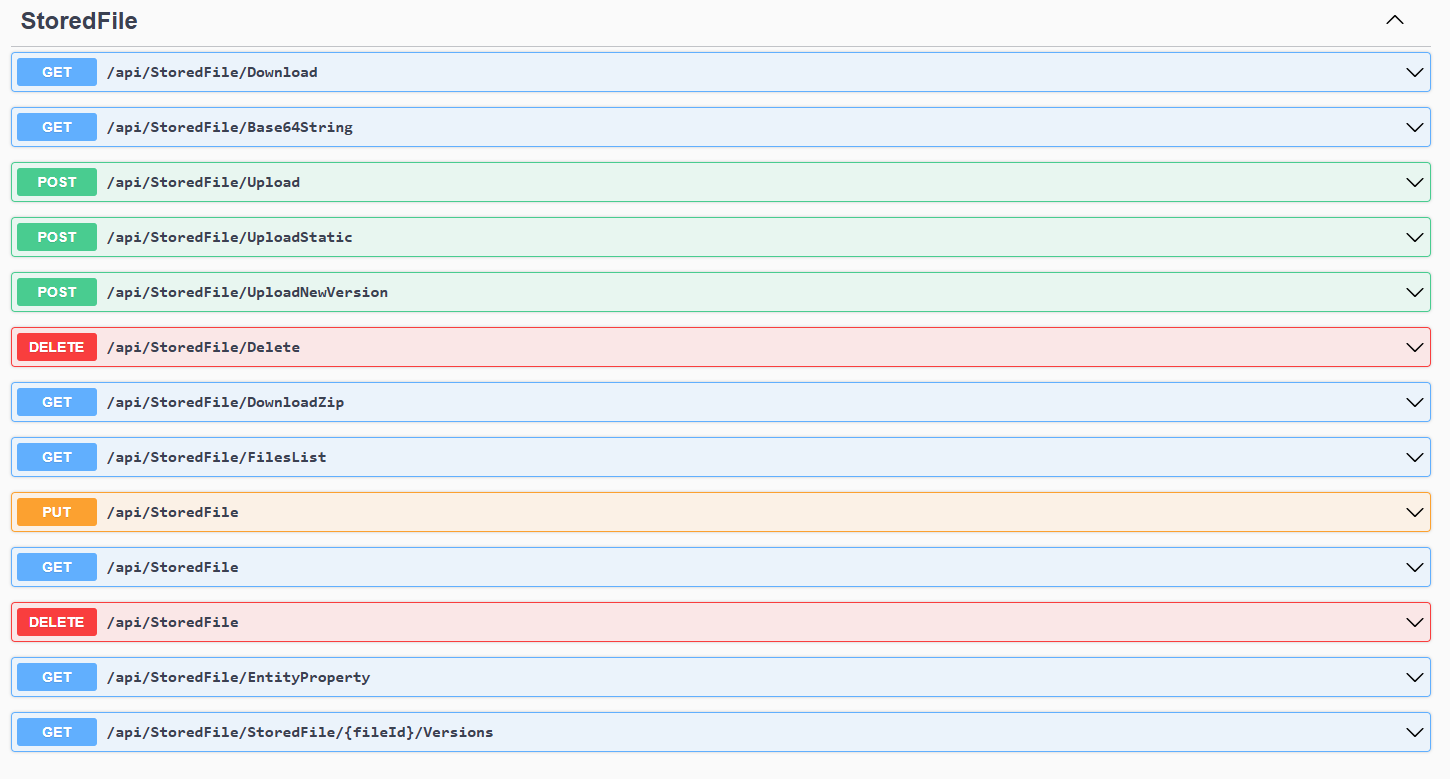

File management API

[TODO]

Storage of files

Uploaded files are not stored in the database, but rather as separate binary files in a file storage location. Shesha provides for the storage of files in the following types of locations:

• Local disk
• Azure Blob Storage

Additional storage locations can be added by implementing the IFileStorageProvider interface.

Local file storage

Uploaded files will be store Local file. To use local file storage update the AppSettings.json as follows

TODO

Azure Blob Storage

Uploaded files will be store Azure Blob Storage. To use Azure Blob Storage: update the configuration AppSettings.json as follows

TODO

See Also

• Configuring the File form component
• Configuring the FileList form component
